STANDARDS AND USES |
---|
IEC 60896-21/22 | JIS C8704 |
---|---|
YD/T1360 | BS6290 Part 4 |
GB/T19638 | CE |
Applications (1) | Renewable energy systems |
(2) | Emergency power Systems |
(3) | Solar & wind |
(4) | Telecom control equipment |
(5) | UPS systems |
(6) | Communication equipment |
(7) | BTS stations |
(8) | Mobile power applications e.g. golf carts & forklifts |

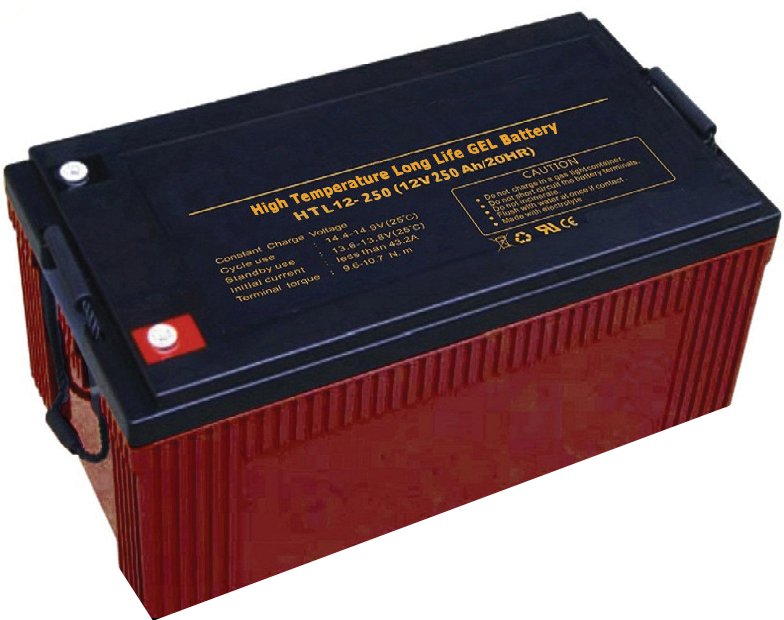

HIGH TEMPERATURE LONG LIFE GEL BATTERY
The high-temperature long life (HTL) series uses the newly developed nano gel electrolyte with super-C additive plus heavy duty plates inside.
The HTL series has a long service life and can provide optimum, reliable service under extreme conditions such as high temp (able to operate at 60°C) and frequent power failure. This series is suited for tropical areas in outdoor applications such as Telecom BTS and off-grid PV stations.
HIGH TEMPERATURE LONG LIFE GEL BATTERY |
---|
Nominal Voltage | 12V (6 cells) | 12V (6 cells) |
---|---|---|
Nominal Capacity @25°C (20h rate) 10h rate (10.8V) 5h rate (10.5V) 1h rate (9.6V) | 200Ah (@10A, 10.8V) 180Ah (18A) 31.8Ah (31.8A) 115.5Ah (115.5A) | 250Ah (@12.5A, 10.8V) 226Ah (22.6A) 191Ah (38.2A) 138.2Ah (138.6A) |
Internal resistance full charge @25°C | ≤3.4mΩ | ≤3.0mΩ |
Ambient Temp Discharge & Charge | -25°C~60°C | -25°C~60°C |
Ambient Temp Storage | -25°C~45°C | -25°C~45°C |
Max. Discharge Current @25°C | 900A(5s) | 1060A(5s) |
Capacity Affected by Temp (10h) 40/25/0/-15°C | 108/100/90/70% | 108/100/90/70% |
Self-Discharge @25°C per month | 3% | 3% |
Charge constant voltage @25°C Standby use (voltage: 13.6-13.8V) | Initial charging current is less than 40A | Initial charging current is less than 48A |
Charge constant voltage @25°C Cycle use (voltage: 14.4-14.9V) | Initial charging current is less than 40A | Initial charging current is less than 48A |
Dimensions (mm) | 532L x 206W x 215H | 520L x 269W x 203H |
Weight | 58.6kg | 71.3kg |
BATTERY CONSTRUCTION |
---|
Electrolyte | Silicon gel | Separator | PVC |
---|---|---|---|
Positive Plate | Thick high Sn low Ca grid w/special paste | Safety Valve | Flame Si-Rubber & aging resistancer |
Negative Plate | Balanced Pb-Ca grid | Terminal | Female Copper Insert M8 |
Pillar Seal | 2 layers epoxy resin | Container & Cover | ABS |

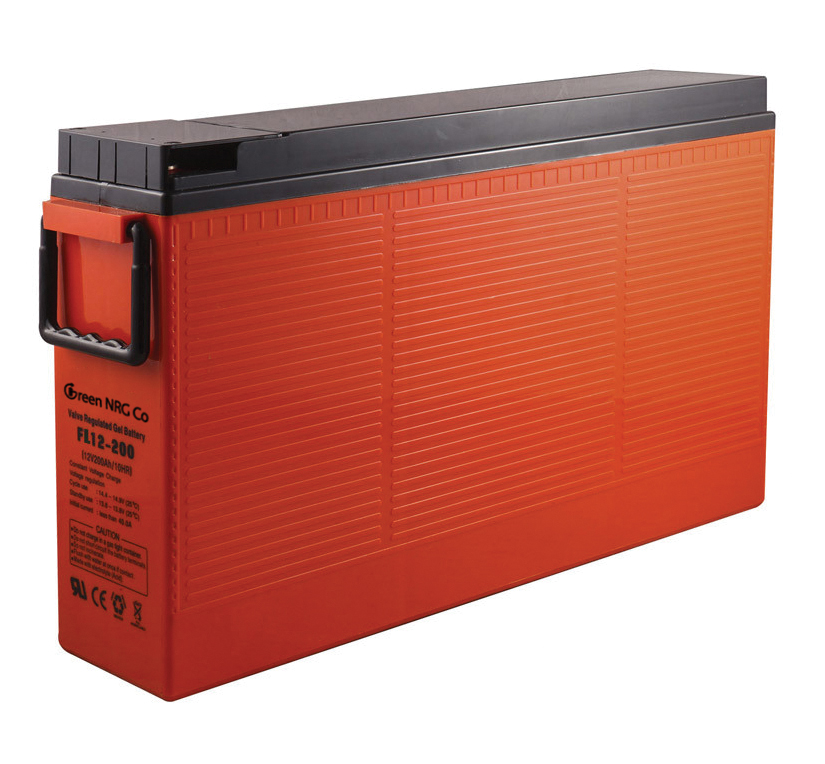

FRONT TERMINAL GEL BATTERY
The FL type front terminal battery has a long lasting service life and front access connections for easy installation and maintenance and is ideally suitable for telecom equipment, renewable energy systems, and other severe environments.
• Wide operating temperature range
• High power density & low self-discharge
• Front access terminal with standard width for 19” and 23” ETSI racks
• Nano gel electrolyte
FRONT TERMINAL GEL BATTERY |
---|
Nominal Voltage | 12V (6 cells) | |
---|---|---|
Design Floating Life @25°C | 12 years | |
Nominal Capacity @25°C (10h rate @20.0A, 10.8V) | 200Ah | |
Capacity | 20h rate (10.6A, 10.8V) 5h rate (33.4A, 10.5V) 1h rate (121.2A, 9.6V) | 212Ah 167.0Ah 121.2Ah |
Internal Resistance | Full Charged Battery @25°C | ≤2.9mΩ |
Ambient Temperature | Discharge & Charge / Storage | -15°C ~ 60°C / -15°C ~ 45°C |
Max Discharge Current @25°C | 960A(5s) | |
Capacity Effected by Temp (10h capacity) | 40°C / 25°C / 0°C / -15°C | 108% / 100% / 90% / 70% |
Self-Discharge @25°C per month | 3% | |
Charge (Constant Voltage) @25°C | Standby Use | Initial charging current is less than 38A. V 13.6-13.8V |
Charge (Constant Voltage) @25°C | Cycle Use | Initial charging current is less than 38A. V 14.4-14.9V |
BATTERY CONSTRUCTION |
---|
Dimensions | 560Lx125Wx316H ±1 mm | Terminal | Female Copper Insert M6 |
---|---|---|---|
Weight | 56±3% kg | Separator | PVC |
Positive Plate | Thick high Sn low Ca grid | Electrolyte | Silicon gel |
Negative Plate | Balanced Pb-Ca grid | Pillar Seal | Two layers epoxy resin seal |
Container & Cover | ABS (UL94-VO optional) | Safety Valve | Flame Si-Rubber and aging resistancer |

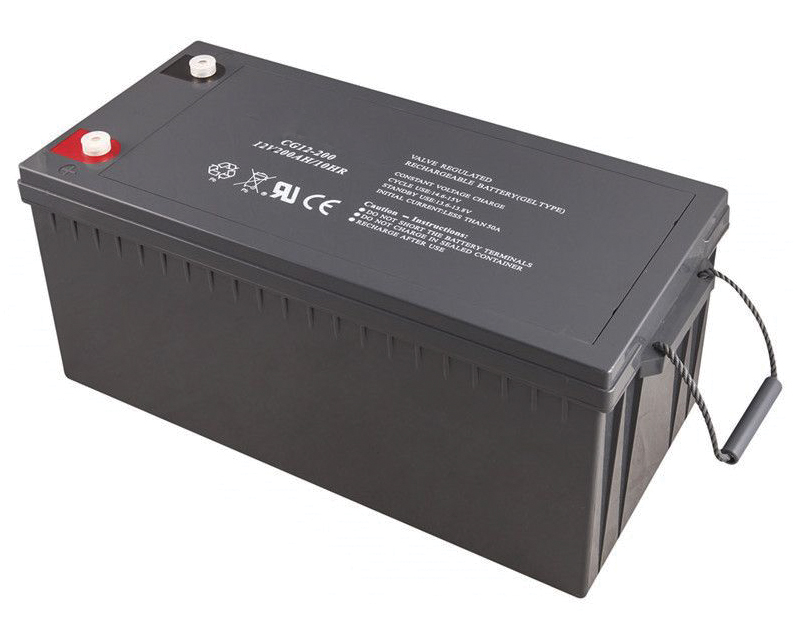

BLACK GEL BATTERY
NextGen NRG’s black gel batteries can be mounted in any orientation, and are especially suited for mobile power applications, such as golf carts, forklifts etc. They can be used in float or cyclic applications, operated without maintenance, and have a low self-discharge.
• Nanometre SiO2 & H2SO4 gelled electrolyte technology
• Not restricted for air travel (IATA/ICAO Special Prov A67)
• Case /cover available in flame retardant ABS
• Lead, calcium tin alloy grid for high power density
BLACK GEL BATTERY |
---|
Nominal Voltage | 12V (6 cells) | 12V (6 cells) |
---|---|---|
Nominal Capacity @25°C 10h rate (10.8V) 5h rate (10.5V) 1h rate (9.6V) | 200Ah (20A) 176Ah (35.2A) 124Ah (124A) | 250Ah (25A) 235Ah (47A) 173Ah (173A) |
Internal resistance full charge @ 25°C | 4.5mOhms | 2.0mOhms |
Self-discharge capacity decline p/m @20°C | Approx 2% | Approx 3% |
Operating temp range discharge/storage | -20°C~60°C | -20°C~60°C |
Operating temp range charge | -10°C~60°C | -10°C~60°C |
Max. Discharge Current @25°C | 1000A(5s) | 1250A(5s) |
Short Circuit Current | 3000A | 3000A |
Constant Voltage Charge | 25°C | 25°C |
Cycle Use | 14.4-14.7V | 2.30-2.35VPC |
Maximum charging current | 60A | 75.0A |
Temperature compensation | -20mV/°C | -30mV/°C |
Standby Use | 13.6-13.8V | 2.23-2.27VPC |
Temperature compensation | -30mV/°C | -20mV/°C |
Dimensions (mm) / Weight (kg) | 522x240x219 / 58.5 | 520x268x220 / 70.5 |
BATTERY CONSTRUCTION |
---|
Electrolyte | Gel | Terminal | Copper |
---|---|---|---|
Safety Valve | Rubber | Separator | PVC |
Negative Plate | Lead | Positive Plate | Lead dioxide |
Cover | ABS | Container | ABS |
